Seahorse HST Single Drum 20-25

Hydraulic Tugger

Powered by: 25 HP Marine duty TEFC 220440 Volt Electric motor driving a 30GPM Hydraulic pump hosed to a Hydraulic motor coupled to a rebuilt gearbox

Pulling capacity: 20,000 lbs S.L.P. 1st layer @ 20 FPM



Cable capacity: 350' x 3/4" wire rope



Drum dimensions: 7" dia Barrel, 15-1/2" dia Flange, 19" Drum width

Skid dimensions: 4' width x 4' length

Overall dimensions: 4' width x 4' length x 4' - 9-3/4" height

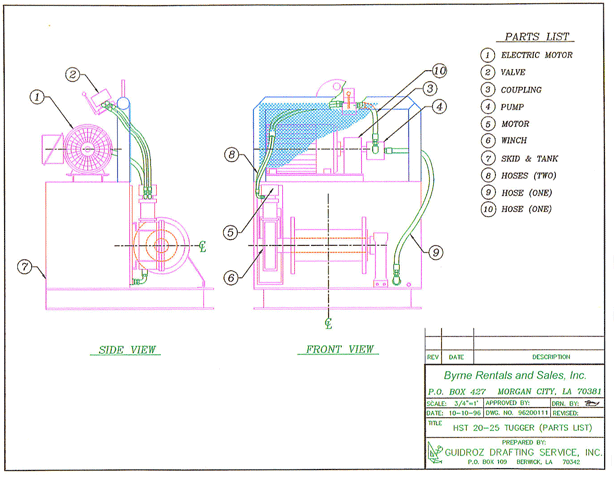

Parts List
