Seahorse Model ESS 12

All steel construction

Bronze Bearings

Manual lever operated steel jaw clutches

Manual steel handwheel brake band with bronze bearing, brass nut and 4140HT Acme treaded bolt

Enclosed oil bath great box with 4140 Ht steel main shaft

Powered by: 15 H.P. 220 volt 3 phase 60 cycle marine electric motor thru a Tulsa gearbox. Electric motor starter included

Drum dimensions - Barrel: 7"  Width: 15"  Flanged O.D.: 30"

Capacities: 12,000 lbs at 35 feet per minute 1st layer

Cable Capacity: 600 Feet of 5/8" Cable

Skid Dimensions - Length: 19"  Width: 63"  I-Beam Size: 4"  13 lbs

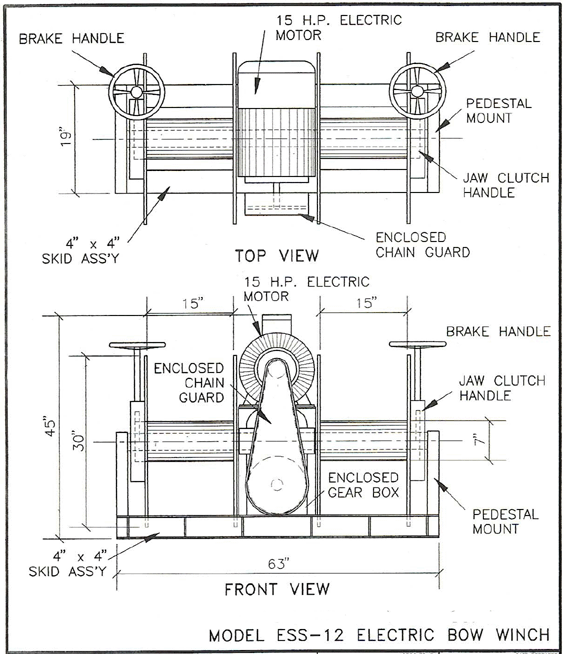

Overall Dimensions - Length: 36"  Width: 63"  Height: 45"

Built to meet or exceed ABS standards

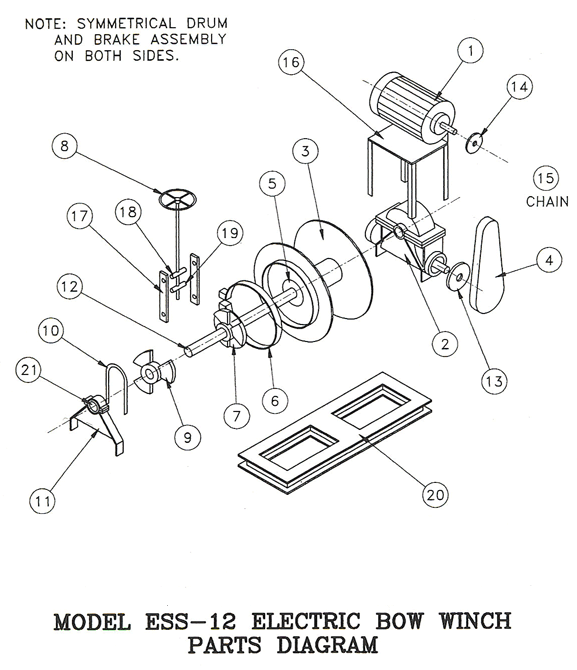

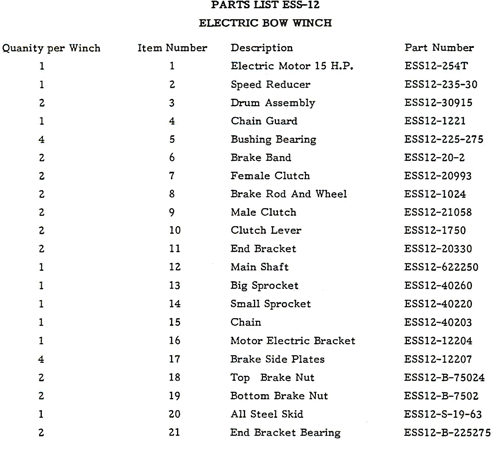

Parts List

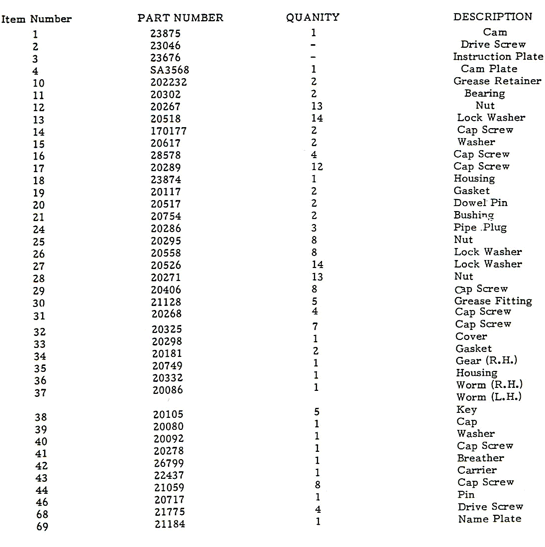

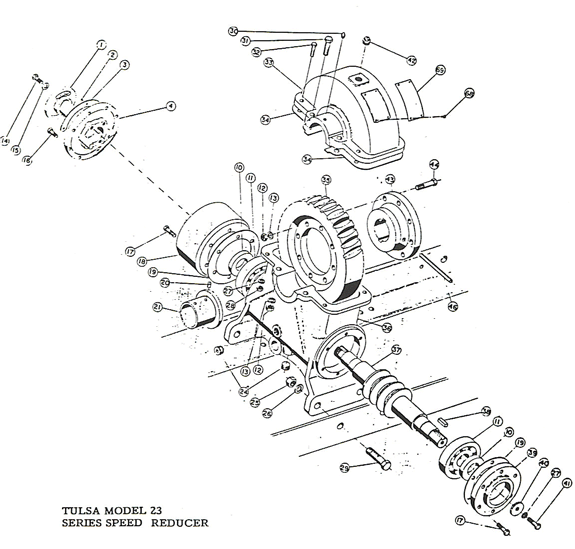

Tulsa Model 23
